NFS volume mounting error following a network change

I recently redesigned my network configuration from a single /24 address range to multiple /24 ranges with routing done on my core switch. Part of this change meant shutdown the vSphere cluster, and the storage arrays (Synology) and reassigning new IP addresses and gateways to all of these entities.

When my hosts and my storage arrays had their new IP addresses and I attempted to re-map my NFS volumes to the Synology, I got a strange error message while attempting to mount my NFS volumes. “There are incorrect or missing values below.

Unable to mount NFS point in vSphere Web Client

Another error message “Unable to add new NAS, volume with the label X already exists” was given on the ESXi shell when I attempted the same operations using a SSH session directly on my host.

Unable to add new NAS volume with the label already exists

Yet the esxcfg-nas -l command did not return any values.

Well it seems that the old NAS entry is still in the ESXi host, but not listed. To fix this small issue, you need to delete the non-existing NFS mount point and recreate it.

In the next screenshot you see me listing my mount points, attempting to mount a new NFS volume (legolas_nfs), erasing the non-visible entry, and at last adding the new NFS volume.

erasing_nfs_ghost_mount_point_2

I hope this can save someone some precious time.

Notes & Photos of the Homelab 2014 build

I’ve had a few questions about my Homelab 2014 upgrade hardware and settings. So here is a follow-up. This is just a photo collection of the various stages of the build.  Compared to my previous homelabs that where designed for a small footprint, this one isn’t, this homelab version has been build to be a quiet environment.

I started my build with only two hosts. For the cases I used the very nice Fractal Design Define R4. These are ATX chassis in a sleek black color, can house 8x 3.5″ disks, and support a lot of extra fans. Some of those you can see on the right site, those are Noctua NF-A14 FLX. For the power supply I picked up some Enermax Revolution Xt PSU.

IMG_4584

For the CPU I went with the Intel Xeon E5-1650v2 (6 Cores @3.5GHZ) and a large Noctua NH-U12DX i4. The special thing about the NH-U12DX i4 model is that it comes with socket brackets for the Narrow-Brack ILM that you find on the Supermicro X9SRH-7TF motherboard.

IMG_4591

The two Supermicro X9SRH-7TF motherboards and two add-on Intel I350-T2 dual 1Gbps network cards.

IMG_4594

Getting everything read for the build stage.

On the next photo you will see quiet a large assortment of pieces. There are 5 small yet long lasting Intel SSD S3700 100GB, 8x Seagate Constellation 3TB disks, some LSI HBA Adapters like the LSI 9207-8i and LSI 9300-8i, two Mellanox ConnectX-3 VPI Dual 40/56Gbps InfiniBand and Ethernet adapters that I got for a steal (~$320USD) on ebay last summer.

IMG_4595

You need to remember, that if you only have two hosts, with 10Gbps Ethernet or 40Gbps Ethernet, you can build a point-to-point config, without having to purchase a network switch. These ConnectX-3 VPI adapters are recognized as 40Gbps Ethernet NIC by vSphere 5.5.

Lets have a closer look at the Fractal Design Define R4 chassis.

Fractal Design Define R4 Front

Fractal Design Define R4 Front

The Fractal Design Define R4 has two 14cm Fans, one in the front, and one in the back. I’m replacing the back one with the Noctua NF-A14 FLX, and I put one in the top of the chassis to extra the little warm air out the top.

The inside of the chassis has a nice feel, easy access to the various elements, space for 8x 3.5″ disk in the front, and you can push power-cables on the other side of the chassis.

Fractal Design Define R4 Inside

Fractal Design Define R4 Inside

A few years ago, I bought a very nice yet expensive Tyan dual processor motherboard and I installed it with all the elements before looking to put the CPU on the motherboard. It had bent pins under the CPU cover. This is something that motherboard manufacturers and distributors have no warranty. That was an expensive lesson, and that was the end of my Tyan allegiance. Since then I moved to Supermicro.

LGA2011 socket close-up. Always check the PINs. for damage

LGA2011 socket close-up. Always check the PINs. for damage

Here is the close up of the Supermicro X9SRH-7TF

Supermicro X9SRH-7TF

Supermicro X9SRH-7TF

I now always put the CPU on the motherboard, before the motherboard goes in the chassis. Note on the next picture the Narrow ILM socket for the cooling.

Intel Xeon E5-1650v2 and Narrow ILM

Intel Xeon E5-1650v2 and Narrow ILM

Here is the difference between the Fractal Design Silent Series R2 fan and the Noctua NF-A14 FLX.

Fractal Design Silent Series R2 & Noctua NF-A14 FLX

Fractal Design Silent Series R2 & Noctua NF-A14 FLX

What I like in the Noctua NF-A14 FLX are the rubber hold-fasts that replace the screws holding the fan. That is one more option where items in a chassis don’t vibrate and make noise. Also the Noctua NF-A14 FLX runs by default at 1200RPM, but you have two electric Low-Noise Adapters (LNA) that can bring the default speed down to 1000RPM and 800RPM. Less rotations equals less noise.

Noctua NF-A14 FLX Details

Noctua NF-A14 FLX Details

Putting the motherboard in the Chassis.

IMG_4623

Now we need to modify the holding brackets for the CPU Cooler. The Noctua NH-U12DX i4 comes with Narrow ILM that can replace the ones on it. In the picture below, the top one is the Narrow ILM holder, while the bottom one still needs to be replaced.

IMG_4621

And a close up of everything installed in the Chassis.

IMG_4629

To hold the SSD in the chassis, I’m using an Icy Dock MB996SP-6SB to hold multiple SSD in a single 5.25″ frontal slot. As SSD don’t heat up like 2.5″ HDD, you can select to cut the electricity to the FAN.

IMG_4611

This Icy Dock MB996SP-6SB gives a nice front look to the chassis.

IMG_4631

How does it look inside… okay, honest I have tied up the sata cables since my building process.

IMG_4632



Here is the picture of my 2nd vSphere host during building. See the cabling is done better here.

IMG_4647



The two Mellanox ConnectX-3 VPI 40/56Gbps cards I have where half-height adapters. So I just to adapt a little bit the holders so that the 40Gbps NIC where firmly secured in the chassis.

IMG_4658

Here is the Homelab 2014 after the first build.

IMG_4648



At the end of August 2014, I got a new Core network switch to expand the Homelab. The Cisco SG500XG-8F8T, which is a 16x Port 10Gb Ethernet. Eight ports are in RJ45 format, and eight are in SFP+ format, and one for Management.

Cisco SG500XG-8G8T

Cisco SG500XG-8G8T

I build a third vSphere host using the same config as the first ones. And here is the current 2014 Homelab.

Homelab 2014

Homelab 2014

And if you want to see what the noise is at home, check this Youtube movie out. I used the dBUltraPro app on the iPad to measure the noise level.

And this page would not be complete if it didn’t have a vCenter cluster screenshot.

Homelab 2014 Cluster

A new beginning… joining VMware

After nearly 13 years at LANexpert, a Value Added Reseller and Integrator in the french speaking area of Switzerland, I’ll be starting a new chapter of my professional career. I’ll be joining VMware as a Solutions Architect on the 1st of October.

Over the better part of the last decade, I have played my part in building the Virtualization practice for LANexpert, into one of the first VMware Premier Partner in Switzerland. During this past decade, I have seen and pushed the changes in IT infrastructure from standalone server, to nearly full virtualized datacenter (not the network yet). Now I have the great opportunity to join the ‘mothership’ and keep pushing a technology that I trust and truly believe in.

I’m excited with the new challenge and the opportunity to meet a lot more new people as driven as me by virtualization, and sad to leave a great ‘family’ as LANexpert behind me. I also want to thanks all the people around me in the community, that have helped me directly or indirectly to grow and extend my technical expertise.

Erik Bussink





Upgrading LSI HBA 9300-8i via UEFI (Phase 06)

Here is a resume on how to upgrade a LSI SAS3 HBA 9300-8i card to the latest BIOS & Firmware using the UEFI mode. This is applicable to my homelab Supermicro X9SRH-7TF or any other motherboard with UEFI Build-In EFI Shell. I’ve found that using the UEFI mode to be more practical than the old method of a MSDOS bootable USB key. And this is the way more and more Firmware and BIOS will be released.

Tom and Duncan showed  how to upgrade an LSI 9207-4i4e from within VMware vSphere 5.5 CLI. In this article I’m going to show you how to use the UEFI Shell for the upgrade.

Preparation.

First you need to head over to the LSI website for your HBA and download a few files to your computer. For the LSI HBA 9300-8i you can jump to the Software Downloads section. You want to download three files, extract them and put the files on a USB key.

The Installer_P4_for_UEFI which contains the firmware updater sas3flash.efi that works with P06. You can retrieve it using this dropbox link as it’s disappeared from the LSI download site.

The SAS3_UEFI_BSD_P6 which contains the BIOS for the updater (X64SAS3.ROM)

The 9300_8i_Package_P6_IR_IT_firmware_BIOS_for_MSDOS_Windows which contains the SAS9300_8i_IT.bin firmware and the MPTSAS3.ROM bios.



lsi9300_8i_download

At this point you put all those extract files mentioned above on a USB key.

lsi9300_p06_usbdos



You reboot your server, and modify the Boot parameters in the BIOS of the server to boot in UEFI Built-In EFI Shell.

UEFI_Build-In_EFI_Shell

Upgrading BIOS & Firmware.

When you reboot you will be dumped in the UEFI shell. You can easely move to the USB key with your programs using

UEFI_booting

And lets move over to the USB key. For me the USB key is mapped as fs1: but you could also have a fs0:

A quick dir command will list the files on the USB key.

uefi_dir

Using the sas3flash.efi -list command (extracted from the Installer_P4_for_UEFI file) we can list the local LSI MPT3SAS HBA adapter, see the SAS address and see the various versions of the Firmware & BIOS and UEFI BSD Bios.

sas3flash_list

There are three components that we want to patch, the Firmware, the BIOS and the UEFI BSD Code.

Here we start by upgrading the UEFI BSD BIOS. Using the sas3flash.efi we can fine tune with the SAS address of the controller, and select the X64SAS3.ROM file found in the SAS3_UEFI_BSD_P6 download. As you see, the –c Controller command allows you to specify to which adapter the BIOS is loaded. You can enter the number 0 or the SAS Address. sas3flash.efi -c 006F94D30 -b X64SAS3.ROM

sas3flash_bios

The next step is upgrade the Firmware with the SAS9300_8i_IT.bin found in the 9300_8i_Package_P6_IR_IT_firmware_BIOS_for_MSDOS_Windows file. sas3flash.efi -c 006F94D30 -f SAS9300_8i_IT.bin

sas3flash_firmware

The last part is to upgrade the MPTSAS3.ROM file which contains the BIOS of the LSI adapter. Here again we use sas3flash.efi -c 006F94D30 -b MPTSAS3.ROM.



The end result once Phase 06 firmware and bioses have been install is the following sas3flash.efi -list

lsi9300_8i_phase06



  • Firmware Version 06.00.00.00
  • BIOS Version 08.13.00.00
  • UEFI BSD Version 07.00.00.00

Now reboot the server, and make sure to change back your Boot option in the server BIOS to your USB key or harddrive that contains the vSphere hypervisor.



Speed testing 40G Ethernet in the Homelab

In my previous post, I described the building of two Linux virtual machines to benchmark the network. Here are the results.

homelab_network_1g_10g_40g_iperf_testing



The first blip, is running iperf to the maximum speed between the two Linux VMs at 1Gbps, on separate hosts using Intel I350-T2 adapters.

The second spike (or vmnic0), is running iperf to the maximum speed between two Linux VMs at 10Gbps. The two ESXi hosts are using Intel X540-T2 adapters.

The third mountain (or vmnic4) and most impressive result is running iperf between the Linux VMs using 40Gb Ethernet. The two ESXi hosts are using Mellanox ConnectX-3 VPI adapters.

The Homelab 2014 ESXi hosts, uses a Supermicro X9SRH-7TF come with an embedded Intel X540-T2. We can more closely see the  results of the iperf test at 10Gbps in the following picture.

homelab_network_10g_iperf_testing

I also got last summer from Ebay, a set of Mellanox ConnectX-3 VPI Dual Adapters for $300. These cards support InfiniBand 40Gb/s and 56Gb/s, and Ethernet at 10Gb/s and 40Gb/s. By default, vSphere 5.5 recognizes these adapters as 40Gb Ethernet adapters. And I really wanted to test these adapters at 40Gb Ethernet… and the results are great. I can push upto 37.3 Gbits/sec thru a single 40Gb Ethernet link, or 4299 MBytes/sec. Just have a peak at the following screenshot.

homelab_network_40g_iperf_testing

I guess having 40Gb Ethernet for vMotion is too fast…  The vMotion of a 12GB VM takes 15-16 seconds, of which only 3 seconds are used for the memory transfer, the rest is the memory snapshot, processes freeze, cpu register cloning and the rest.

All the test run at 10Gb Ethernet and 40Gb Ethernet where done with Jumbo Frames. For 40Gb Ethernet it makes real (x 2.5) difference in bandwidth.

This was a fun piece to lab in the homelab.

Creating a Linux Net benchmark VM

In this post, I will quickly explain, how I created my Virtual Machine under Linux, that I have and will use to benchmark some aspects of my new 2014 Homelab. First I download from the CentOS website, the latest version of the CentOS 6.5 64bit Net Install .ISO. This will allow me to install the Virtual Machine quickly with the packages I need.

The next step is to create a two Linux 64bit VMs on my vCenter. I selected to create a VMX-09 virtual machine, so that I can edit the network properties from the vCenter 5.5 Windows Client or the vSphere Web client. I create a two vCPU machine, because the application that I will be running for my network benchmarks is iperf, and is a single-threaded process, so the 2nd vCPU will be consumed by the operating system of the VM.

For Network Adapters, I select two VMXNET3 adapters, the first one will be used for management and baselining my perfs on a 1Gbps Ethernet, the 2nd one can be moved around from vSwitch to dVSwitch and from VMNIC to VMNIC. Note that I rather give two virtual sockets with one core, than one virtual socket with two cores. This will give you about 6% more performance for the VM.

vm_64bit_linux_01

Another small change I always do, is to optimize the Virtual Machine Monitor for the VMs. The VMM is a thin layer for each VM that leverages the the scheduling, memory management and the network stack in the VMkernel. So I change in the Options tab, the CPU/MMU Virtualization settings to force the use of Intel VT-x/AMD-V for instruction set virtualization and Intel EPT/AMD RVI for MMU virtualization. This will ensure that the VM gets the best optimized hardware supportfor the CPU and MMU. This should only be done on recent processors, when you are sure that your CPU/MMU supports EPT and VT-X. If that is not the case, then leave this setting to Automatic.

vm_64bit_linux_02_cpu-mmu



If you want to know more about these settings and many others, I highly recommend you read the great “vSphere High Performance Cookbook” by Prasenjit Sarkar (@stretchcloud) at Packt Publishing.

I just need to say that in the past few years, all my VMs and Templates get this setting by default on all my systems and my customer clusters.

Next, we need to boot the Linux machine with the CentOS Net Installer. I’m not going to explain all the steps needed for every Linux settings, just a few points. When you get the option to select the installation method we select the URL option.

CentOS Installation Method

It will then ask you to select the network card and will fetch an IP address from the network via DHCP before asking you to enter the URL. We will use the following URL

http://mirror.centos.org/centos/6.5/os/x86_64/

Enter URL

Once the install GUI has started make sure not to forget to put the 2nd Ethernet interface where you will be doing your iperf testing to a 9000 MTU. Otherwise your network performance results will be skewed.

nic_eth1_mtu
For my performance testing VMs, I let the OS select the default file partition scheme, this is not a VM requiring special sizing.

default_partition_scheme

I select the Desktop installation config for these test platforms.

desktop installation

Once you have finished installing the virtual machine, install the latest VMware Tools on it, before modifying the grub menu. I add the key work VGA=0x317 to all my linux machines kernel settings in grub.conf or menu.lst (OpenSuSE), so that the VM boots think it has a 1024×768 monitor. Even if I stay in the Console mode of Linux, it gives me more screen estate.

When you have Linux machines that run on 1Gbps ethernet, the default settings in the Linux kernel are fine, but if you want to optimize the network traffic for Linux for 10Gbps, there are a few System variables that we can fine tune. Lets edit the /etc/sysctl.conf and add six fields:

# Minimum, initial and max TCP Receive buffer size in Bytes

net.ipv4.tcp_rmem = 4096 87380 134217728

# Minimum, initial and max buffer space allocated

net.ipv4.tcp_wmem = 4096 65536 134217728

# TCP Moderage Receive Buffer Auto-Tuning

net.ipv4.tcp_moderate_rcvbuf=1

# Maximum Receive socket buffer size (size of BDP)

net.core.rmem_max = 134217728

# Maximum Send socket buffer size (size of BDP)

net.core.wmem_max = 134217728

# Maximum number of packets queueed on the input side

net.core.netdev_max_backlog = 300000

I’m going to use iperf to test the links between two machines, so for this set of machines, I disable the IPtables as I have multiple ports being used between the two linux test platforms. chkconfig iptables off will do the trick. A quick reboot and all the modifications will take effect.

Also as we will test the 10G Ethernet performance, both virtual machines are on a Distributed vSwitch (dVS), and the PortGroup is configured with a MTU set at 9000 (Jumbo Frames).

And before finishing this blog, I also make sure to use DRS Rules, so that the Linux VM 01 should runs on my ESX01 server, and the Linux VM 02 should run on my ESX02 server. Using the Should rule, allows me to quickly put a host in maintenance mode, while ensure that my performance virtual machines stay where they should.

To use the iperf (a very single threaded program) between two test hosts, start iperf on the first one as a service iperf -s , and on the second one, we use the commands iperf -m -i t300 -c IP_of_other_VM or iperf -m -i t300 -c IP_of_other_VM -fM to have the same results but in Bytes instead of bits.

Here is preliminary results using a 10G Ethernet interface between the two hosts (both hosts have an Intel X540-T2 adaper).

10g_results





Upgrading Mellanox ConnectX firmware within ESXi

Last summer, while reading the ServeTheHome.com website, I saw a great link to Ebay for Mellanox ConnectX-3 VPI cards (MCX354A-FCBT). These cards where selling at $299 on ebay. I took three of the awesome cards. These Mellanox ConnectX-3 VPI adapters where simply too good to be true… Dual FDR 56Gb/s or 40/56GbE using PCIe Generation 3 slots. Having three of these Host Card Adapters without a InfiniBand switch is limiting.

With my new Homelab 2014 design, I now have two vSphere hosts that have PCIe Generation 3 slots, and using a simple QSFP+ Fiber Cable, I can create a direct point-to-point connection between the two vSphere hosts.

The Mellanox Firmware Tools (MFT) that can run within the vSphere 5.5 and allow to check the state of the InfiniBand adapter and even update the firmware.

MFT for vSphere

Installing the tools is very straight forward.

# esxcli software vib install -d /tmp/mlx-fw/MLNX-MFT-ESXi5.5-3.5.1.7.zip

Install Mellanox MST

Unfortunately it requires a reboot.

The next steps going to be to start the MST service, check the status of the of the Mellanox devices and query them to check the current level of firmware.

I don’t need to have the Mellanox MST driver running all the time, so I will simply start it using /opt/mellanox/bin/mst start.

Next we will query the state of all Mellanox devices in the host using /opt/mellanox/bin/mst status -v from which we will get the path to the devices.

We then use the flint tool to query the devices to get their stats.

/opt/mellanox/bin/flint -d /dev/mt40099_pci_cr0 hw query

and

/opt/mellanox/bin/flint -d /dev/mt40099_pci_cr0 query

which returns us the current Firmware version and the GUIDs and MACs for the host card adapters.

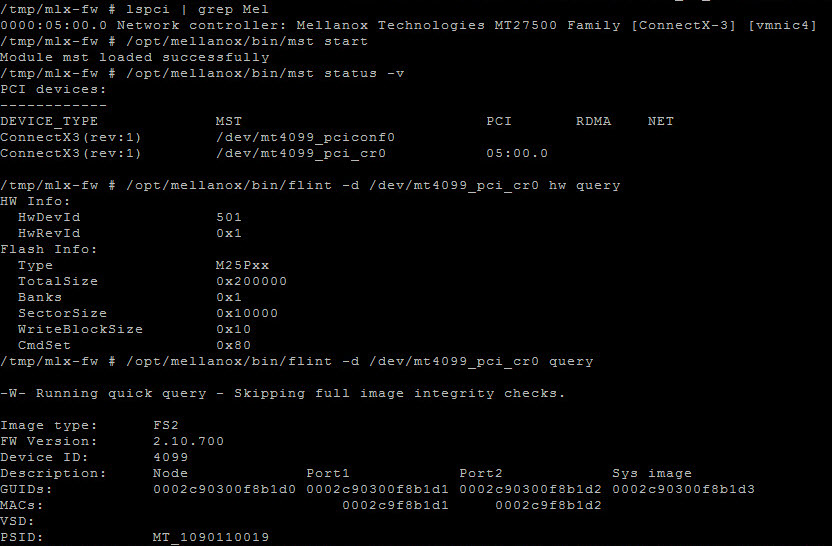

Mellanox firmware upgrade 01

Well as I’m running only FW Version 2.10.700 its time to upgrade this firmware to release 2.30.8000

 /opt/mellanox/bin/flint -d /dev/mt4099_pci_cr0 -i /tmp/mlx-fw/fw-ConnectX3-rel-2_30_8000-MCX354A-FCB_A1-FlexBoot-3.4.151_VPI.bin burn does the trick.

Mellanox firmware upgrade 02

And we can quickly check the new running firmware on the InfiniBand adapter.





Upgrading the X9SRH-7TF LSI HBA 2308 and LSI HBA 9207-8i

Here is a resume on how to upgrade the LSI HBA 2308 Chipset on the Supermicro X9SRH-7TF and a LSI SAS2 HBA 9207-8i card to the latest BIOS & Firmware using the UEFI mode. This is applicable to my homelab Supermicro X9SRH-7TF or any other motherboard with UEFI Build-In EFI Shell.

I’ve found that using the UEFI mode to be more practical than the old method of a MSDOS bootable USB key. And this is the way more and more Firmware and BIOS will be released.

Tom and Duncan showed you last week how to upgrade an LSI 9207-4i4e from within VMware vSphere 5.5 CLI. In this article I’m going to show you how to use the UEFI Shell for the upgrade.

Preamble.

Since last week, I have been running the PernixData FVP (Flash Virtualization Platform) 1.5 solution on my two ESXi hosts, and I have found that the LSI HBA 2308 on the motherboard had a tendency to drop all the Drives and SSDs under heavy I/O load. I did upgrade last week the LSI HBA 2308 from the original Phase 14 Firmware to Phase 16, but that didn’t solve the issue.  Unfortunately I have not yet found on the Supermicro Support site, a newer release of the Firmware Phase 18 or BIOS for the embedded adapter.

So I dropped in the box another LSI HBA 9207-8i adapter, which is also based on the LSI 2308 chip. And low and behold, my two LSI adapter seemed to have nearly the exact same Firmware & BIOS.

two_adapters_lsi

Well if they LSI Embedded HBA and the LSI 9207-8i are nearly identical and with the same chipset… who knows if I burn the Firmware & BIOS on the motherboard…



Preparation.

First you need to head over to the LSI website for the LSI 9207-8I and download a few files to a local computer. For the LSI HBA 9207-8i you can jump to the Software Downloads section. You want to download three files, extract them and put the files on a USB key.

  • The Installer_P18_for_UEFI which contains the firmware updater (sas2flash.efi)
  • The UEFI_BSD_P18 which contains the BIOS for the updater (X64SAS2.ROM)
  • The 9207_8i_Package_P18_IR_IT_Firmware_BIOS_for_MSDOS_Windows which contains the 9207-8.bin firmware.

lsi_site

At this point you put all those extracted files mentioned above on a USB key.

You reboot your server, and modify the Boot parameters in the BIOS of the server to boot in UEFI Built-In EFI Shell.

UEFI_Build-In_EFI_Shell

When you reboot also jump into the LSI HBA Adapter to collect the controllers SAS address. Its a 9 digit number you can find on the following interface. Notice that it starts with a 0 on the left of the quote.

lsi_sas_address_1

and

lsi_sas_address_2

For my adapters it would be 005A68BB0 for the SAS9207-8I and 0133DBE00 for the embedded SMC2308-IT.



Upgrading BIOS & Firmware.

Lets plug in the USB key in the server, and lets boot into the UEFI Build-In EFI Shell.

UEFI_booting

And lets move over to the USB key. For me the USB key is mapped as fs1: but you could also have a fs0:.  A quick dir command will list the files on the USB key.

usb_dir

Using the sas2flash.efi -listall command (extracted from the Installer_P18_for_UEFI file) we can list all the local LSI HBA adapters and see the various versions of the Firmware & BIOS.

sas2flash_listall_old

We can also get more details about a specific card using the sas2flash.efi -c 0 -list

sas2flash_list_old_9207

and sas2flash.efi -c 1 -list

sas2flash_list_old_2308

Now lets just upgrade the BIOS with the X64SAS2.ROM file found in the UEFI_BSD_P18 download and the Firmware with the 9207-8.bin that we found in the 9207-8i_Package_P18_IR_IT_Firmware_BIOS_for_MSDOS_Windows file.

As you see, the -c Controller command allows you to specify to which adapter the BIOS and Firmware is upgraded.

sas2flash_upgrade_0

and

sas2flash_upgrade_1

Lets have a peak again at just one of the LSI Adapters, the controller 1, which is the embedded one, now seems to have the Board name SAS9207-8i. A bit confusing, but it seemed to have worked.

sas2flash_1_list

Using the sas2flash.efi -listall command now shows us the new Firmware and BIOS applied to both cards.

sas2flash_listall_new

Now power-off the server, so the new BIOS & Firmware are properly loaded, and make sure to change back your Boot option in the server BIOS to your USB key or harddrive that contains the vSphere hypervisor.

Both LSI 9207-8i and the Embedded LSI HBA 2308 now show up as LSI2308_1 and LSI2308_2 in the vSphere Client.

esxi_storage_adapters



Homelab 2014 upgrade

I’ve been looking for a while for a new more powerful homelab (for home), that scales and passes the limits I currently have. I had a great success last year with the Supermicro X9SRL-F motherboard for the Home NAS (Running NexentaStor 3.1.5), so I know I loved the Supermicro X9 Single LGA2011 series. Because of the Intel C600 series of chipset, you can break the barrier of the 32GB you find on most motherboards (Otherwise the X79 chipset allows you upto 64GB).

As time passes, and you see product solutions coming out (vCOPS, Horizon View, vCAC, DeepSecurity, ProtectV, Veeam VBR, Zerto) with memory requirements just exploding. You need more and more memory. I’m done with the homelab, where you really need to upgrade just because you can’t upgrade the top limit of the memory. So bye bye the current cluster of four Shuttle XH61v with 16GB.

With the Supermicro X9SRH-7TF (link) you can go to 128GB easy (8x16GB) for now. It’s really just a $$$ choice. 256GB (8x32GB) is still out of reach for now, but that might change in 2 years.

I have attempted to install PernixData FVP 1.5 on my Homelab 2013 Shuttle XH61v, but the combo of the motherboard/AHCI/Realtek R8168 makes for an unstable ESXi 5.5. Sometimes the PernixData FVP Management Server sees the SSD on my host, then it looses it. I did work with PernixData engineers (and Satyam Vaghani), but my homelab is just not stable. Having been invited to the PernixPro program, doesn’t give me the right to use hours and hours of PernixData engineers time to solve my homelab issues. This has made the choice for my two X9SRH-7TF boxes much easier.

The Motherboard choice of the Supermicro X9SRH-7TF (link) is great because of the integrated management, the F in the X9SRH-7TF. Its a must these day. Having the Dual X540 Intel 10GbE Network Card on the motherboard will allow me to start using the network with a dual gigabit link,  and when I have the budget for a Netgear XS708E or XS712T it will scale to dual 10Gbase-T. In the meantime I can also have a single point-to-point 10GbE link between the two X9SRH-7TF boxes for vMotion and the PernixData data synchronization. The third component that comes on the X9SRH-7TF is the integrated LSI Storage SAS HBA, the LSI 2308 SAS2 HBA. This will allow me to build a great VSAN cluster, once I go from two to three serverss at a later date. Its very important to ensure you have a good storage adapter for VSAN. I have been using the LSI adapters for a few years and I trust them. Purchasing a motherboard, then adding the Dual X540 10GbE NIC and a LSI HBA would have cost a lot more than the X9SRH-7TF.

For the CPU, Frank Denneman (@FrankDenneman) and me came to the same conclusion, the Intel Xeon E5-1650 v2 is the perfect choice between number of cores, cache and speed. Here is an another description of the Intel Xeon E5-1650 v2 launch (CPUworld).

For the Case, I have gone just like Frank Denneman’s vSphere 5.5 home lab choice with the Fractal Design Define R4 (Black). I used a Fractal Design Arc Midi R2 for my Home NAS last summer, and I really liked the case’s flexibility, the interior design, the two SSD slots below the motherboard. I removed the default two Fractal Design Silent R2 12cm cooling fans in the case and replaced with two Noctua NH-A14 FLX fans that are even quieter, and are connected using rubber holders so they vibrate even less. It’s all about having a quiet system. The Home NAS is in the guest room, and people sleep next to it without noticing it. Also the Define R4 case is just short of 47cm in height, meaning you can lie it down in a 19″ rack if there is such a need/opportunity.

For the CPU Cooler, I ordered two Noctua NH-U12DX i4 coolers which support the Narrow ILM socket. Its a bit bigger than the NH-U9DX i4 that Frank ordered, so we will be able to compare. I burned myself last year with the Narrow ILM socket. I puchased a water cooling solution for the Home NAS and it just couldn’t fit it on the Narrow ILM socket. That was before I found out the difference between a normal square LGA2011 socket and the Narrow ILM sockets used on some of the Supermicro boards. Here is a great article that explains the differences Narrow ILM vs Square ILM LGA 2011 Heatsink Differences (ServeTheHome.com)

For the Power supply, I invested last year in an Enermax Platimax 750W for the Home NAS. This time the selection is the Enermax Revolution X’t 530W power supply. This is a very efficient 80 Gold Plus PSU. which supports ATX 12V v2.4 (can drop to 0.5W on standby) and uses the same modular connectors of my other power supplies. These smaller 500W power supplies are very efficient when they run at 20% to 50% charge. This should also be a very quiet PSU.

I made some quick calculations yesterday for the Power Consumption, I expect the max power that can be consumed by this new X9SRH-7TF build should be around 180-200W, but it should be running around the 100-120W on a normal basis. At normal usage, I should hit the 20% of the power supply load, so my Efficiency of the PSU should be at around 87%, a bit lower than Frank’s choice of the Corsair RM550. This is the reason why I attempt to take a smaller PSU rather than some of the large 800W or even 1000W PSU.

xt_530w_efficiency

For the Memory, I’m going to reuse what I purchased last year for my Home NAS. So each box will receive 4x16GB Kingston 1600Mhz ECC for now.

My current SSDs that I will use in this rig are the Intel SSD S3700 100GB enterprise SSD and some Samsung 840 Pro 512GB. What is crucial for me in the the Intel S3700 is that its Endurance design is 10 drive writes per day for 5 years. For the 100GB, it means that its designed to write 1TB each day. This is very important for solutions like PernixData or VSAN.  Just to compare, the latest Intel Enthusiast SSD, the SSD 730 240GB that I purchased for my wife’s computer, its endurance design is set to 50GB per day for 5 years (70GB for the 480GB model). The Intel SSD 730 just like it’s Enterprise cousins (S3500 and S3700) come with a Enhanced power-loss data protection using power capacitors. The second crucial design in an Enterprise SSD, is its Sustained IOPs rating.

I’m also adding a Intel Ethernet Server Adapter I350-T2 Network Card for the vSphere Console management. I’m used to have a dedicated Console Management vNIC on my ESXi hosts. These will be configured in the old but trusty vSwitch Standard.

Another piece of equipment that I already own and that I will plug on the new X9SRH-7TF are the Mellanox ConnectX-3 Dual FDR 56Gb/s  InfiniBand Adapters I purchased last year. This will allow me to test and play with a point-to-point 56Gb/s link between the two ESXi hosts. Some interesting possibilities here…  I currently don’t have a QDR or FDR InfiniBand switch, and these switches are also very noisy, so that is something I will look at in Q3 this year.

I live in Switzerland, so my pricing will be a bit more expensive than what you find in other European countries. I’m purchasing my equipment with a large distribor in switzerland, Brack.ch . Even if the Supermicro X9SRH-7TF is not on their pricing list, they are able to order them for me. The price I got for the X9SRH-7TF is at 670 Swiss Francs, and the Intel E5-1650v2 at 630 Swiss Francs. As you see the Cost of one of these server is closing in the 1800-1900 Euro price range. I realize it’s Not Cheap. And it’s the reason of my previous article on the increase costs for a dedicated homelab, the Homelab shift…

Last but not least, in my Homelab 2013 I focus a lot on the Wife Acceptance Factor (WAF). I aimed for Small, Quiet, Efficence. This time, the only part that I will not be able to keep, is the Small. This design is still a Quiet and Efficient configuration. Lets hope I won’t get into too much problems with the wife.

I also need to thank Frank Denneman (@FrankDenneman) as we discussed extensively this home lab topic over the past 10 days, fine tuning the design on some of the choice going into this design. My prior design for the homelab 2014 might have gone with the Supermicro A1SAM-2750F without his input. A nifty little motherboard with Quad Gigabit, 64GB memory support, but lacking on the CPU performance. Thanks Frank.

The homelab shift…

I believe that we are at a point of time where we will see a shift in the vSphere homelab designs.

One homelab design, which I see as becoming more and more popular is the Nested Homelab using either a VMware Workstation or VMware Fusion base.
There are already a lot of great blogs on Nested homelabs (William Lam), and I must at least mention the excellent AutoLab project. AutoLab is a quick and easy
way to build a vSphere environment for testing and learning, and the latest release of AutoLab supports the vSphere 5.5 release.

The other homelab design is a dedicated homelab. Some of the solutions that people want to test on the homelabs are becoming larger and with more components (Horizon, vCAC), requiring more resources. So it is painful to admit, but I believe the dedicated homelab is heading towards a more expensive direction.

Let me explain my view with these two points.

The first one and the more recent one, is that if you want to lab Virtual SAN, you need to spend some non-negligible money in your lab. You need to invest in at least 3 SSDs on three hosts, and you need to invest in a storage controller that is on the VMware VSAN Hardware Compatibility List.

Recently Duncan Epping mentioned once again that unfortunately the Advanced Host Controller Interface (AHCI) standard for SATA is not supported with VSAN, and you can loose the integrity of your VSAN storage. Something that you don’t want to happen in production and loose hours of your precious time configuring VMs. Therefore if you want to lab Virtual SAN, you will need to get an storage controller that is supported. This will cost money and will limit the whitebox motherboards that support VSAN without add-on cards. I really hope that the AHCI standard will be supported in the near future, but there is no guarantee.

The second one, and the one I see as a serious trend, is network drivers support. Network drivers used in most homelab computer are not updated for the current release of vSphere (5.5) and don’t have a bright future with upcoming vSphere releases.

VMware has started with vSphere 5.5 their migration to a new Native Driver Architecture and slowly moving away from the Linux Kernel Driver that are plugged into the VMkernel using Shims (great blog entry by Andreas Peetz on Native Driver Architecture).

For all those users that need the Realtek R8168 driver in the current vSphere 5.5 release, they need to extract the driver from the latest vSphere 5.1 offline bundle, and need to injected the .vib driver in the vSphere 5.5 iso file. You can read more about this popular article at “Adding Realtek R8168 Driver to ESXi 5.5.0 ISO“.

My homelab 2013 implementation uses these Realtek network cards, and the driver works good with my Shuttle XH61v.  But if you have a closer peak at the many replies to my article, a big trend seems to emerge. People use a lot of various Realtek NICs on their computers, and they have to use these R8168/R8169 drivers. Yet these drivers don’t work well for everyone. I get a lot of queries about why the drivers stop working, or are slow, but hey, I’m just a administrator that cooked a driver in the vSphere ISO, I’m not driver developer.

vSphere is a product aimed at large enterprise, so priority in the development of drivers, is to be expected for this market.  VMware seems to have dropped/lagged the development of these non-Enterprise oriented drivers. I don’t believe we will see further development of these Realtek drivers from the VMware development team, only Realtek could really pickup this job.

This brings me up to the fact that for the future, people will need to move to more professional computers/workstations and controllers if they want to keep using and learning vSphere at home on a dedicated homelab.
I really hope to be proven wrong here… So you are most welcome to reply to me that I’m completely wrong.



47787550





28/03/2014 Some spelling corrects and some
